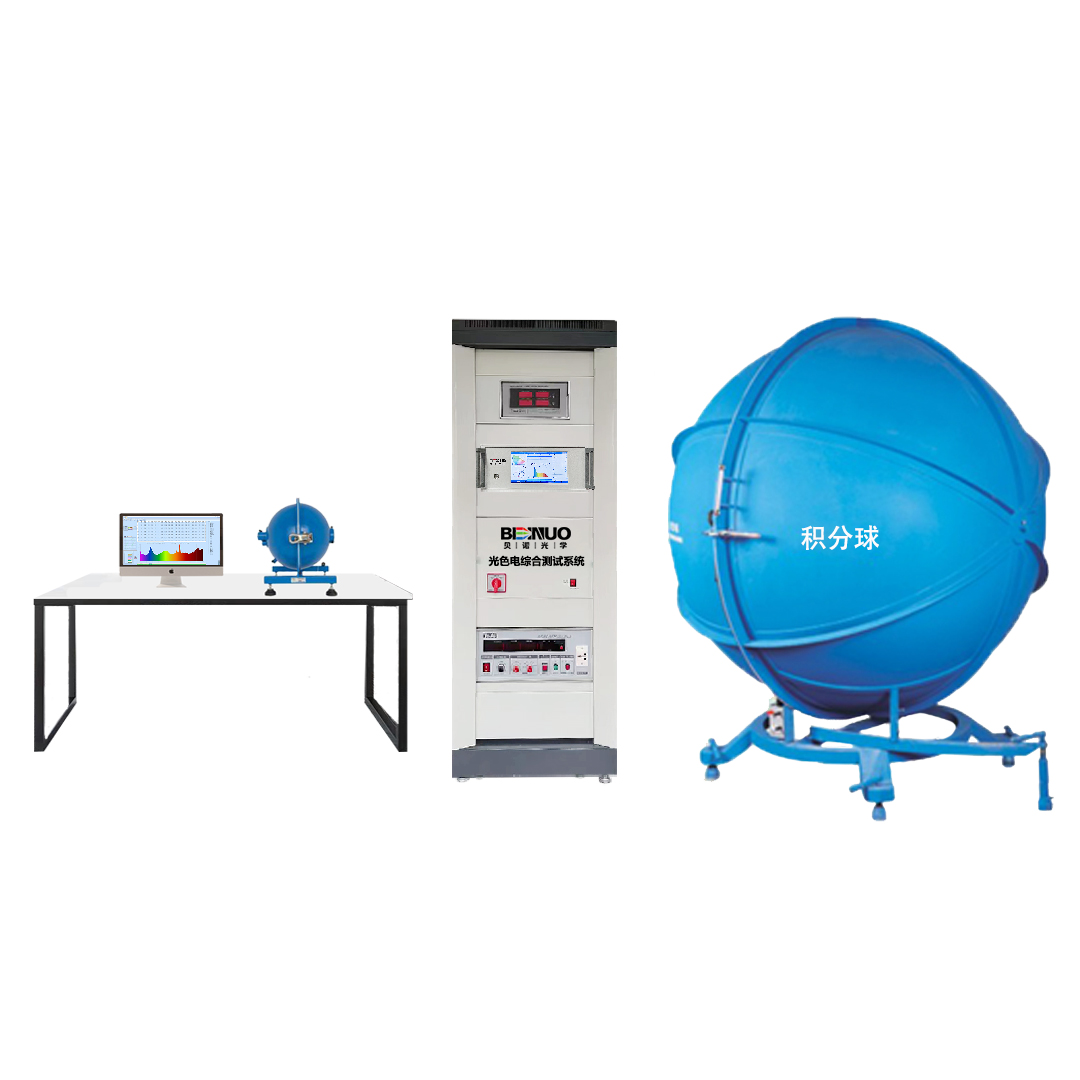

HAS2000P Plant Lighting Comprehensive Testing System

● Measure the spectral power distribution, chromaticity coordinates, relevant color temperature, color rendering index, color tolerance, gamut index, fidelity index, peak wavelength, spectral half width, main wavelength, color purity, luminous flux, irradiance, light efficiency, voltage, current, power, power factor, energy efficiency index, energy efficiency level, and other optoelectronic performance parameters of LED and lighting products;

● The instrument has a high degree of intelligence, and the host adopts a high-definition touch screen, which is more intuitive and convenient. Testing stability, high repeatability, fully meeting the measurement requirements for light and color in international and domestic testing;

C、Performance parameters of plant lamps:

PPF(μmol/s)（350-800nm） PPF(μmol/s)（400-700nm）

PPFuv(μmo/s） PPFr(μmol/s) PPFg(μmol/s) PPFb(μmol/s)

PPFfr(μmol/s) PPFfir(μmol/s) PPE(μmol/J) Euv(w/㎡)

Er(w/㎡) Eg(w/㎡) Eb (w/㎡) Efr(w/㎡)

Eir(w/㎡) Ep(w/㎡) Erb

Name	Function	Parameter range
Speed	Test speed	5ms-2s
Optical parameter testing	Luminous flux measurement range	10mlm-50000lm
	Photometric measurement accuracy	one-level
	wavelength range	350-800nm（customizable）
	wavelength accuracy	±0.2nm
Color parameter testing	Color temperature measurement range	1000K—100000K
	Resolution	1K
	Color temperature accuracy	±0.2%
	Standard accuracy of chromatic seating	±0.0015
	Measurement range of color rendering index	0-100
	Color rendering index test error	±(0.5%rd+0.5)
	Color tolerance accuracy	±0.5SDCM
Electrical parameter testing	Voltage range	0.01V～30.00V
	Current range	0.1mA～5000.0m A
	Measurement accuracy	0.5 level

Measure the spectral power distribution of LED and various lighting fixtures, and measure the comprehensive parameters of LED light, color, and electricity. Widely used in lighting fixtures and various LED lighting, plant lamps, special light sources, or LED bead raw material testing. A host is equipped with relevant devices, which fully meets the requirements of various performance tests and analysis of the light source's light, color, and electricity. Suitable for research and development testing in laboratories and quality inspection departments, as well as for rapid testing in production lines. High automation integration, with segmented settings.

HAS2000P Plant Lighting Comprehensive Testing System
